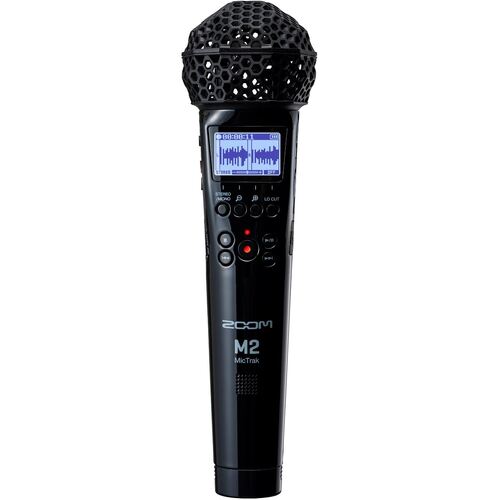

Zoom M2 Mictrack Recorder

M2 Features

Stereo 32-bit float recorder
Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
Body construction and specialized finish to reduce handling noise
LCD screen with waveform display
Easy-to-use front panel controls
Mono mode for ENG application
Onboard Normalization function
3.5mm headphone output
Includes a newly designed mic clip to mount on a mic stand
USB Microphone compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
Use as a USB microphone and record to SD card simultaneously
Runs on 2 AA batteries* (11 hour battery life)

_{* Batteries not included}
^{** For Android, 32-Bit Float cannot be used with USB Microphone}

Specs

Inputs

Built-in mic	90º XY stereo format
	Directionality	Unidirectional
	Sensitivity	−42 dB/1 Pa at 1 kHz
	Maximum sound pressure input	135 dB SPL

Outputs

PHONE/LINE OUT jack	Connector	Stereo mini jack
	Maximum output level	20 ｍW + 20 ｍW (into 32Ω load)
	Output impedance	10 Ω or less
Built-in speaker		500mW 8Ω mono speaker

Recorder

Recording format	WAV
	44.1/48/96 kHz, 32-bit float
	Stereo/mono
	BWF and iXML formats supported
Recording media	4–32GB cards compatible with the microSDHC specification
	64GB–1TB cards compatible with the microSDXC specification

Display

	96×64 LCD with backlight

USB

Connector	USB Type-C
	• Use a USB cable that supports data transfer.
USB Mic	USB 2.0 High Speed
	48 kHz
	24-bit or 32-bit float
File transfer	USB 2.0 High Speed

Power

2 AA batteries	Alkaline, Lithium, or Rechargeable NiMH
AC adapter	ZOOM AD-17: DC 5 V/1 A
	• USB bus power is supported.

Estimated Continuous Operation Time Using Batteries

Alkaline batteries	About 11 hours
NiMH batteries (1900 mAh)	About 10.5 hours
Lithium batteries	About 22 hours

Stereo recording, 48kHz/32-bit float, no headphones, display backlight off
_{These values are approximate.

Continuous battery operation times were determined using in-house testing methods.

They will vary greatly according to use conditions.}

Power consumption	5 W maximum
Dimensions	221.5 mm (W) × 61.9 mm (D) × 59.3 mm (H)
Weight (including batteries)	204 g

Note: 0 dBu = 0.775 Vrms
