Formidably Flexible.

Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.

Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.

Dual isolation.

Ojai R30’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

World tour ready.

With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

Never run out of outputs.

Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to the Zuma power supply (sold separately).

Features

Expandable System - Never run out of outputs.

Is your pedalboard growing?

Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to our Zuma power supply (sold separately).

Ojai is part of a truly expandable, modular power distribution system that can grow with your pedalboard.

Ultra Low Noise - Hear your pedals, not your power.

Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies.

World Tour Ready

Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

Playing gigs all around the world? No need to purchase separate power supplies for your international tour.

Ojai has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable).

Whether you’re on 120V, 240V, 100V, or any variation in between, Ojai will deliver clean, reliable power to your pedals, even if the venue has dirty power.

12V & 18V Options

Do you have pedals that require 12V or 18V? Ojai R30 has you covered. Two channels have selectable 9, 12, or 18V output voltages.

Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!

Dual Isolation

Ojai’s all analog circuitry offers two stages of isolation.

Each of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues.

Ojai also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

Energy Efficient

Don’t let the blue chassis fool you: Ojai is green at heart.

Significantly more efficient than linear power supplies, Ojai is able to deliver substantially more current while handling a much wider range of input voltages.

Ojai’s high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

Pedalboard Friendly

Ojai R30’s ultra-low profile design means that it can fit under just about any pedalboard.

It also features built in threaded hardware for easy mounting.

Specs

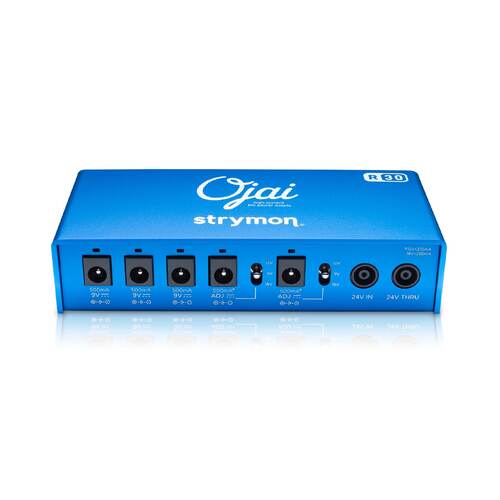

  • 5 high-current, fully isolated 9V outputs with center-negative polarity
    • 3 dedicated 9V outputs (500mA)
    • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 500mA per output powers nearly any pedal
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)

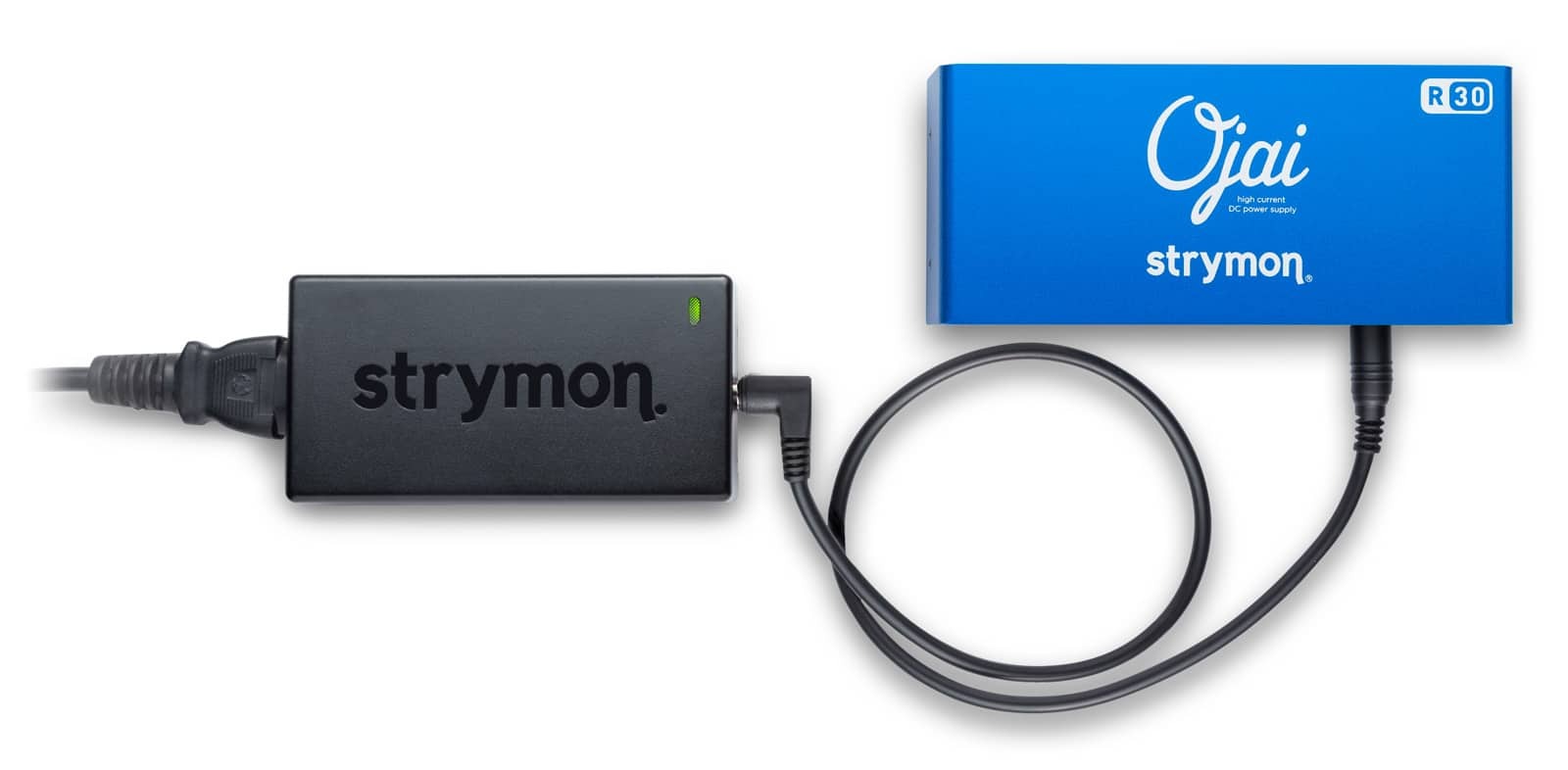

  • 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
  • 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
  • 5 individual custom transformers (one per channel) deliver clean, consistent power
  • Worldwide power compatibility ensures no-hassle international touring
  • Energy efficient, compact design
  • Lightweight and rugged anodized midnight blue aluminum chassis
  • Ultra low profile design fits under nearly any pedalboard
  • Designed and built in the USA

Formidably Flexible.

Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.

Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.

Dual isolation.

Ojai R30’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

World tour ready.

With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

Never run out of outputs.

Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to the Zuma power supply (sold separately).

Features

Expandable System - Never run out of outputs.

Is your pedalboard growing?

Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to our Zuma power supply (sold separately).

Ojai is part of a truly expandable, modular power distribution system that can grow with your pedalboard.

Ultra Low Noise - Hear your pedals, not your power.

Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies.

World Tour Ready

Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

Playing gigs all around the world? No need to purchase separate power supplies for your international tour.

Ojai has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable).

Whether you’re on 120V, 240V, 100V, or any variation in between, Ojai will deliver clean, reliable power to your pedals, even if the venue has dirty power.

12V & 18V Options

Do you have pedals that require 12V or 18V? Ojai R30 has you covered. Two channels have selectable 9, 12, or 18V output voltages.

Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!

Dual Isolation

Ojai’s all analog circuitry offers two stages of isolation.

Each of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues.

Ojai also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

Energy Efficient

Don’t let the blue chassis fool you: Ojai is green at heart.

Significantly more efficient than linear power supplies, Ojai is able to deliver substantially more current while handling a much wider range of input voltages.

Ojai’s high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

Pedalboard Friendly

Ojai R30’s ultra-low profile design means that it can fit under just about any pedalboard.

It also features built in threaded hardware for easy mounting.

Specs

  • 5 high-current, fully isolated 9V outputs with center-negative polarity
    • 3 dedicated 9V outputs (500mA)
    • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 500mA per output powers nearly any pedal
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
  • 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
  • 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
  • 5 individual custom transformers (one per channel) deliver clean, consistent power
  • Worldwide power compatibility ensures no-hassle international touring
  • Energy efficient, compact design
  • Lightweight and rugged anodized midnight blue aluminum chassis
  • Ultra low profile design fits under nearly any pedalboard
  • Designed and built in the USA
SKU SN-OJAI-R30
Barcode # 852636007874
Brand Strymon
