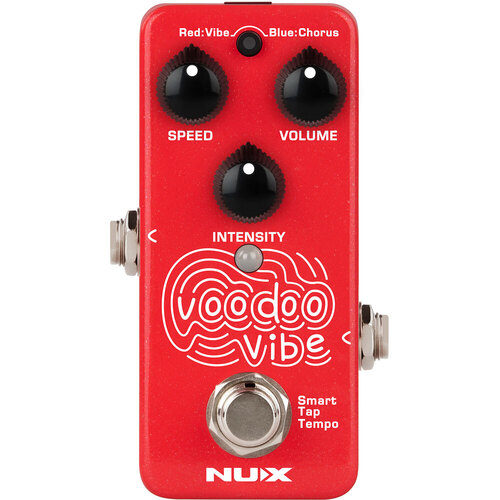

NU-X Mini Core Series "Voodoo Vibe" Uni-Vibe Effects Pedal

The timeless Uni-Vibe® delivered it's huge sound by simulating the physical rotating speaker effect. The Voodoo Vibe (NCH-3) is a mini Uni-vibe pedal with 2 different modes, Vibe and Chorus. You can switch modes by press and holding  the footswitch.

FEATURES:

  • 2 models in a mini enclosure
  • Chorus mode, Intensity will change the depth of the sweeping effect
  • Vibrato mode, Intensity will change the degree of pitch modulation
  • Smart Tap Tempo
  • True-bypass or Buffer-bypass(Tails)
  • Supports Stereo I/O with TRS Cable
  • Low power consumption. (Less than 100mA)
  • Analog dry signal for low noise and zero latency
  • A USB-C port is provided for occasional firmware updates. Connect the USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software.

SPECIFICATIONS:

  • Input Impedance: 1MΩ
  • Output Impedance: 10kΩ
  • Dynamic Range: 103 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC(Negative tip, Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 94 x 51 x 53mm (L x W x H)
  • Weight: 175g

NU-X Mini Core Series "Voodoo Vibe" Uni-Vibe Effects Pedal

The timeless Uni-Vibe® delivered it's huge sound by simulating the physical rotating speaker effect. The Voodoo Vibe (NCH-3) is a mini Uni-vibe pedal with 2 different modes, Vibe and Chorus. You can switch modes by press and holding  the footswitch.

FEATURES:

  • 2 models in a mini enclosure
  • Chorus mode, Intensity will change the depth of the sweeping effect
  • Vibrato mode, Intensity will change the degree of pitch modulation
  • Smart Tap Tempo
  • True-bypass or Buffer-bypass(Tails)
  • Supports Stereo I/O with TRS Cable
  • Low power consumption. (Less than 100mA)
  • Analog dry signal for low noise and zero latency
  • A USB-C port is provided for occasional firmware updates. Connect the USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software.

SPECIFICATIONS:

  • Input Impedance: 1MΩ
  • Output Impedance: 10kΩ
  • Dynamic Range: 103 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC(Negative tip, Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 94 x 51 x 53mm (L x W x H)
  • Weight: 175g
SKU NXNCH3
