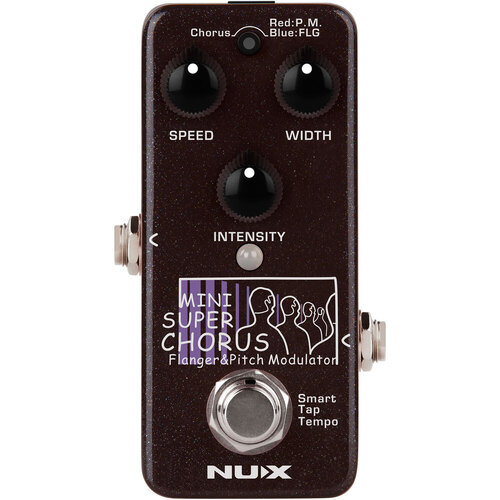

NU-X Mini Core Series "Mini SCF" Super Chorus, Flanger & Pitch Modulation Effects Pedal

The mini SCF (SUPER CHORUS Flanger & Pitch Modulation) tributes to TC Electronic’s Stereo Chorus Flanger, one of the best modulation pedals ever made since 1976.

NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. To achieve all of the objectives, our engineers had to develop an algorithm that mimics the principles of BBD chips - the key component of Analog Chorus effects. Quality-grade BBD chips in large mass have become incredibly rare, so this method is not practical for making an affordable analog chorus device..

FEATURES:

• Tribute to the legendary modulation pedal~SCF
• Chorus, P.M., FLG
• Mini enclosure
• Wide dynamic range: 103dB
• Smart Tap Tempo
• True-bypass or Buffer-bypass
• Supports Stereo
• 9V/100mA
• Analog dry signal for low noise and zero latency
• Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)
• The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software

SPECIFICATIONS:

• Input Impedance: 1MΩ
• Output Impedance: 10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power: 9V DC (Negative tip, Optional ACD-008 adapter)
• Current Draw: Less than 100mA
• Dimensions: 94 x 51 x 53mm (L x W x H)
• Weight: 175g
