Zoom MS-70CDR+ Chorus/Delay/Reverb Pedal
No reviews
$199.00
Regular price
$269.00
Sale price
Save $70.00 (26% off)
Save $70.00 (26% off)
/
Tax included.
ZOOM MS-70CDR+ CHORUS/DELAY/REVERB PEDAL SALE ENDS IN
Days
Hours
Minutes
Seconds
- Low stock - 1 item left
- Backordered, shipping soon
MS-70CDR+ Features
- 140+ guitar and bass effects, including modulation, chorus, delay, and reverb
- Use up to 6 effects at the same time
- 100 Patch slots with 80 presets
- Analog circuit with minimal sound deterioration
- Single stompbox design
- Stereo input and output supports effects like stereo chorus and delays
- 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
- Improved UI for easier navigation and control
- Color coded LCD backlight for selected effect category
- Runs on 2 AA batteries or AC Adapter
Specs
| Maximum number of simultaneous effects | 6 effects | |
|---|---|---|
| User patch memories | 100 | |
| Sampling frequency | 44.1 kHz | |
| A/D conversion | 24-bit 128× oversampling | |
| D/A conversion | 24-bit 128× oversampling | |
| Signal processing | 32-bit | |
| Frequency response | 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load) | |
| Display | 160×128 dot-matrix LCD | |
| Inputs | L/R | Standard mono phone jacks |
| Rated input level: −20 dBu | ||
| Input impedance (line): 470 kΩ | ||
| Outputs | L/R | Standard mono phone jacks |
| Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) | ||
| Input S/N | 122 dB | |
| Noise floor (residual noise) | L/R | –100 dBu |

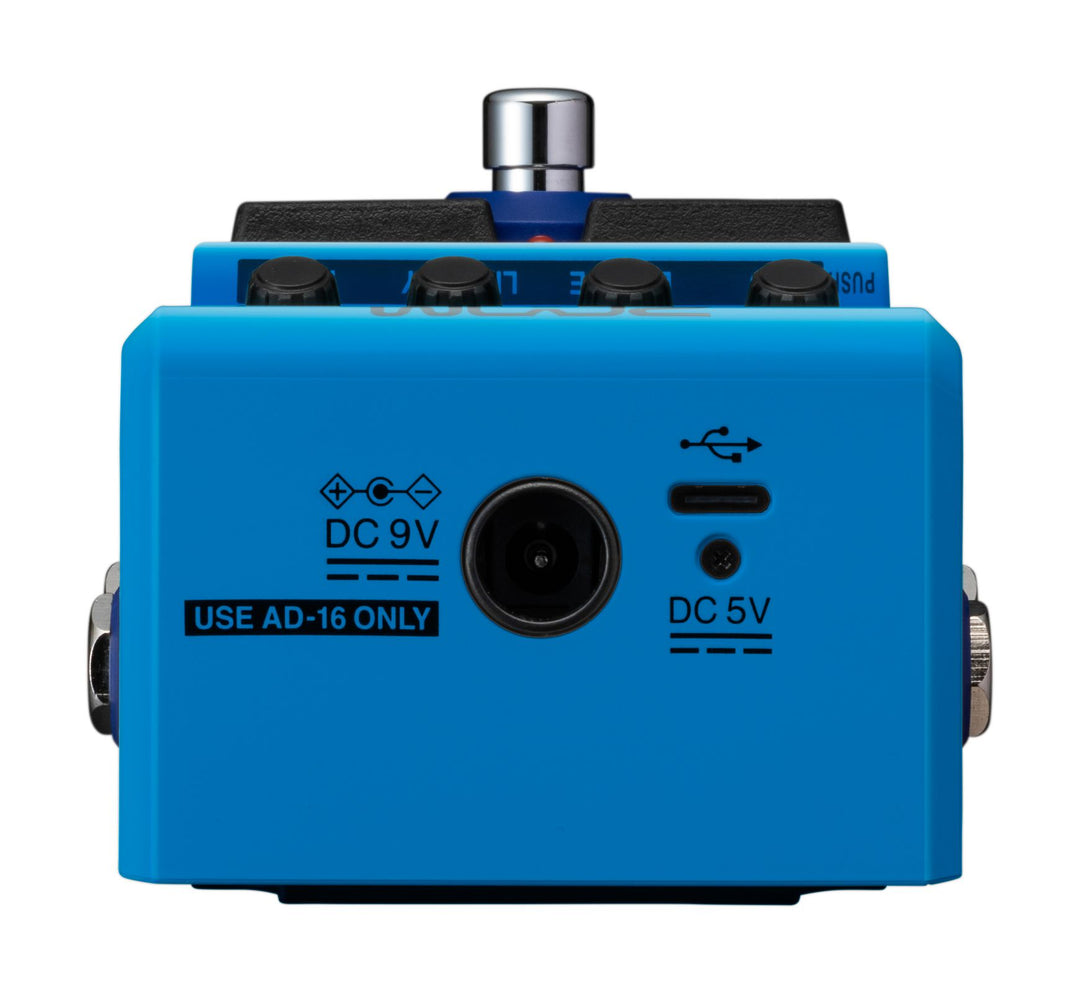

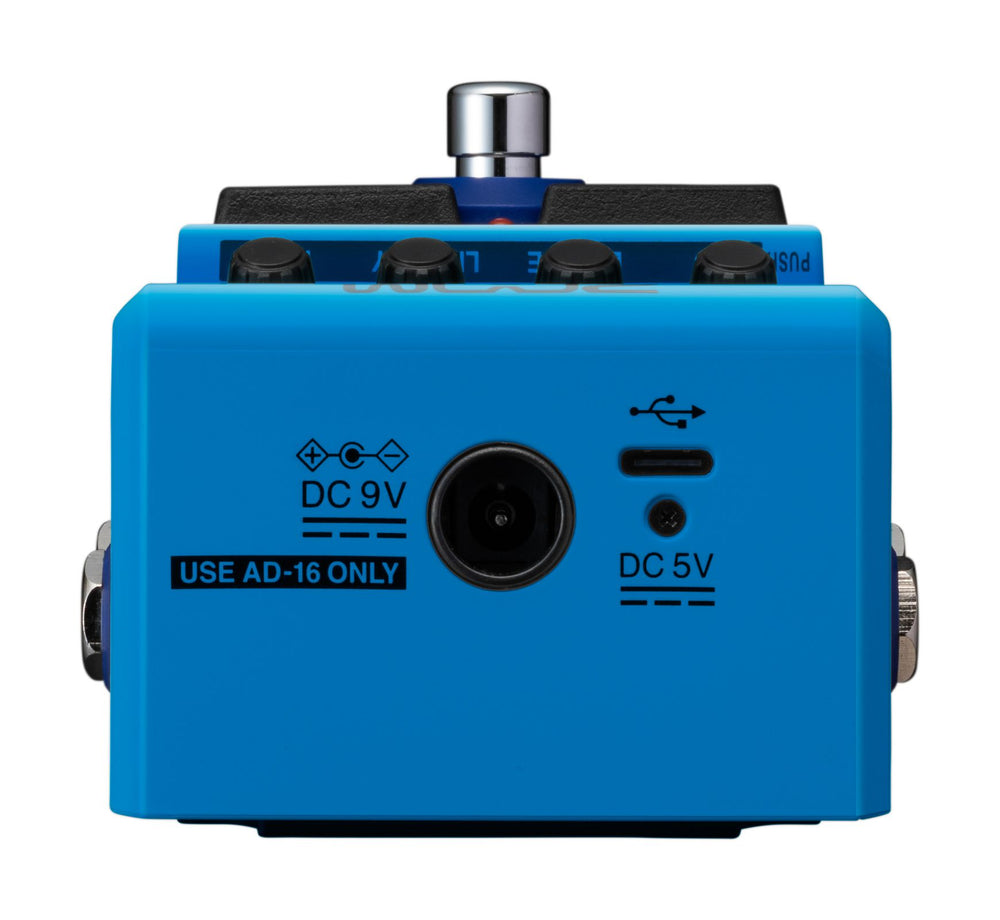

| Power | AC adapter | 9V DC 500mA center negative (ZOOM AD-16) |
| 2 AA batteries | Alkaline, Lithium or Rechargeable NiMH batteries | |
| • USB bus power is supported. | ||
| Estimated operation times | Alkaline batteries: | About 7 hours (about 5 hours using stereo input) |
| NiMH batteries (1900 mAh) | About 6.5 hours (about 5 hours using stereo input) | |
| Lithium batteries | About 14 hours (about 10 hours using stereo input) | |
| • These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. | ||
| USB | Port | USB 2.0 Type-C |
| Supported cable type | Type-C | |
| Handy Guitar Lab | USB 1.1 Full Speed | |
| • Use a USB cable that supports data transfer. | ||
| Dimensions | 133 mm (D) × 79 mm (W) × 61 mm (H) | |
| Weight | 368 g (excluding batteries) | |
| 415 g (including batteries) | ||
Note: 0 dBu = 0.775 V
| SKU | FXM115+ |
|---|---|
| Vendor | ZOOM |
