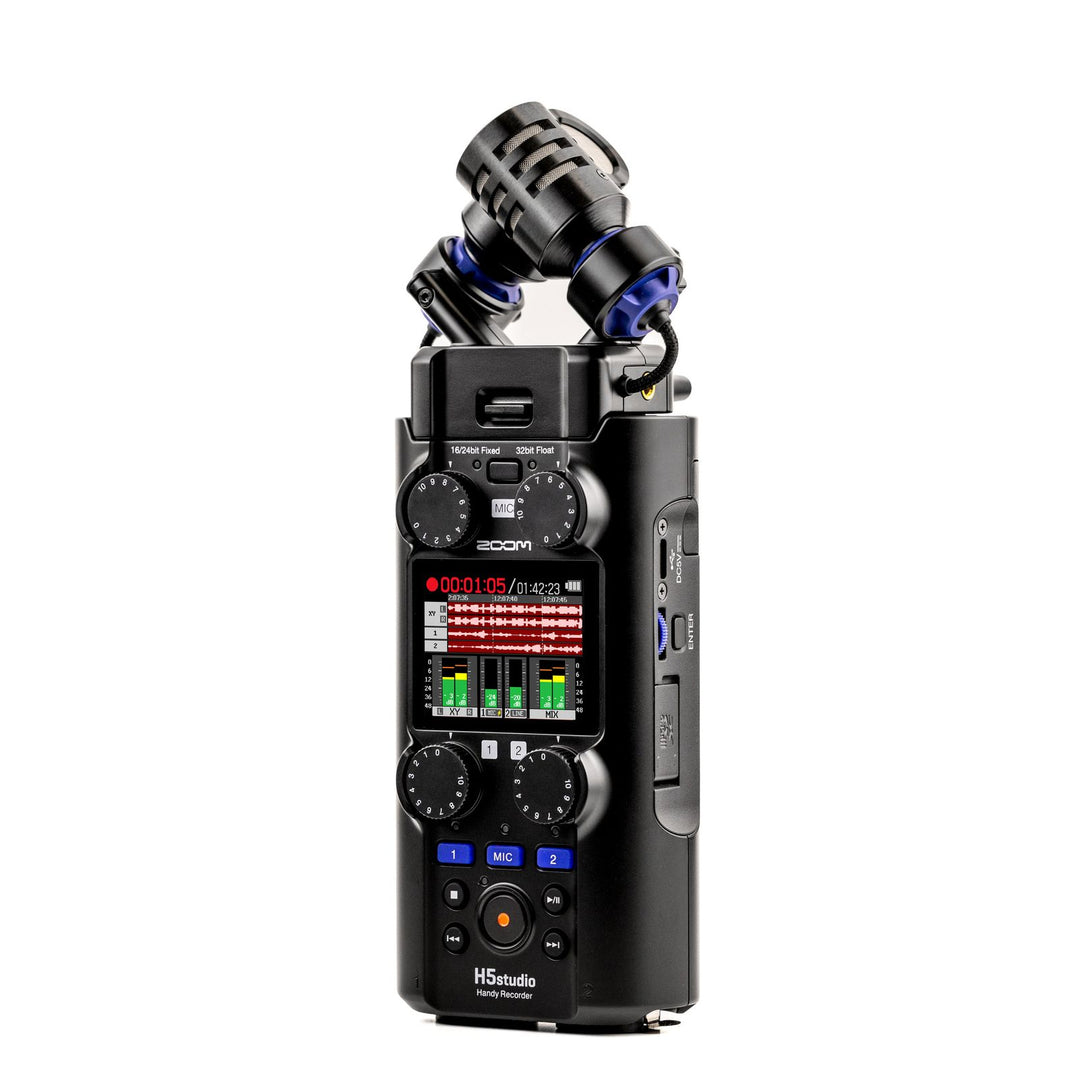

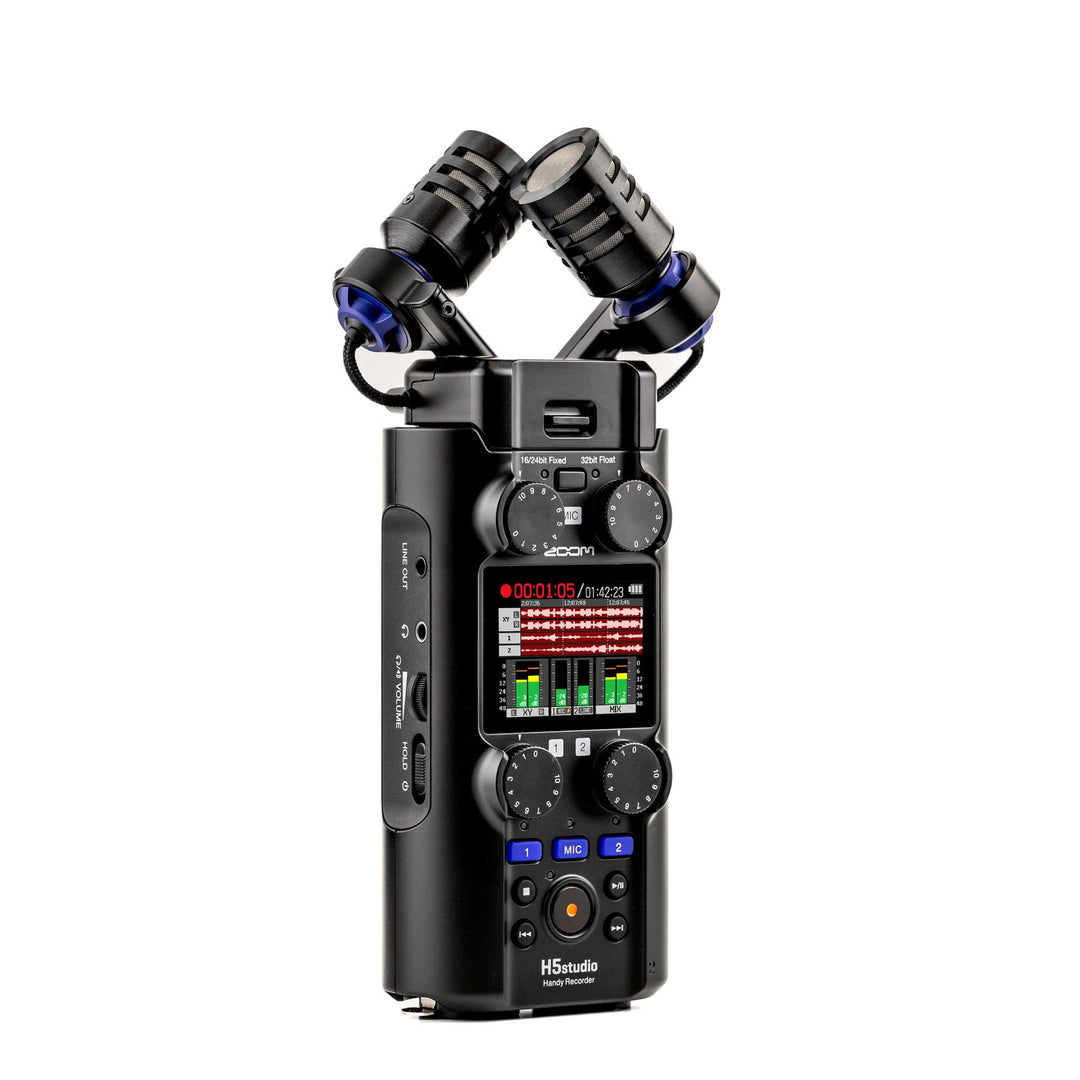

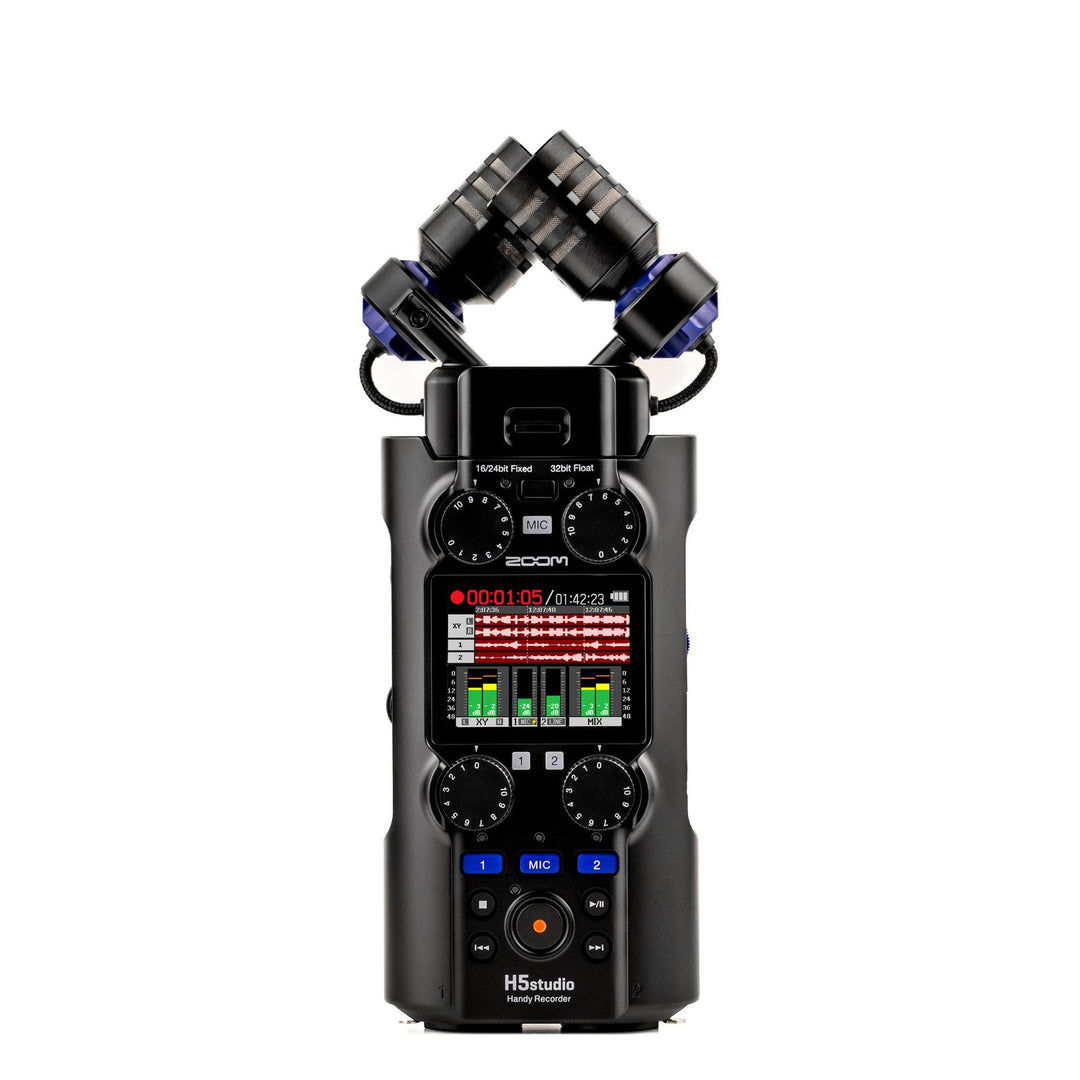

Zoom H5studio Handy Recorder
Save $50.00 (7% off)
ZOOM H5STUDIO HANDY RECORDER SALE ENDS IN
- In stock, ready to ship
- Backordered, shipping soon
Your Best Work Starts Here
The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.
Features

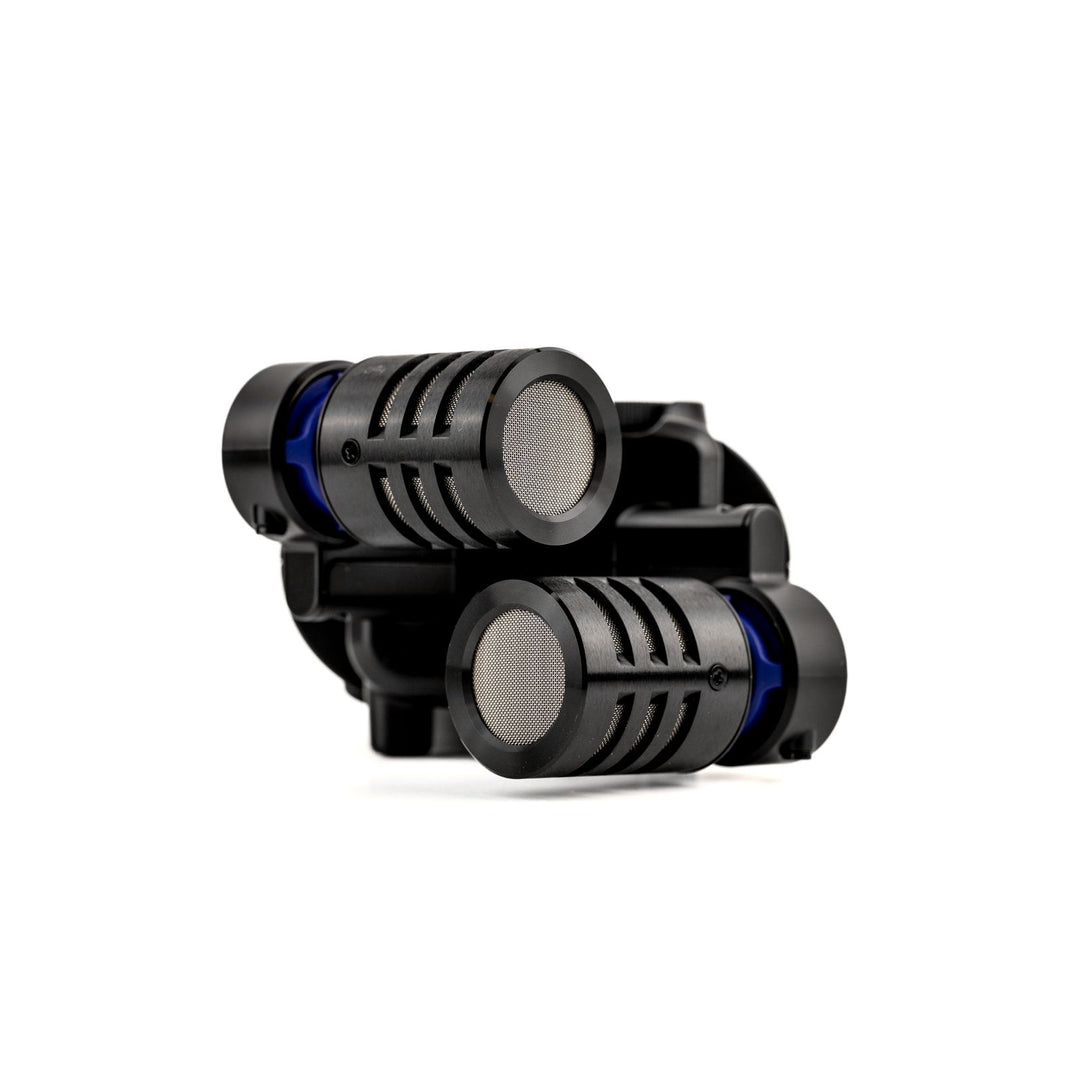

- Large-diameter XY stereo microphone capsule (19.4 mm)
- Dual AD converter + 32-bit float support for clip-free recording
- 16/24-bit depth available
- 4 track simultaneous recording at up to 192kHz sampling in WAV format

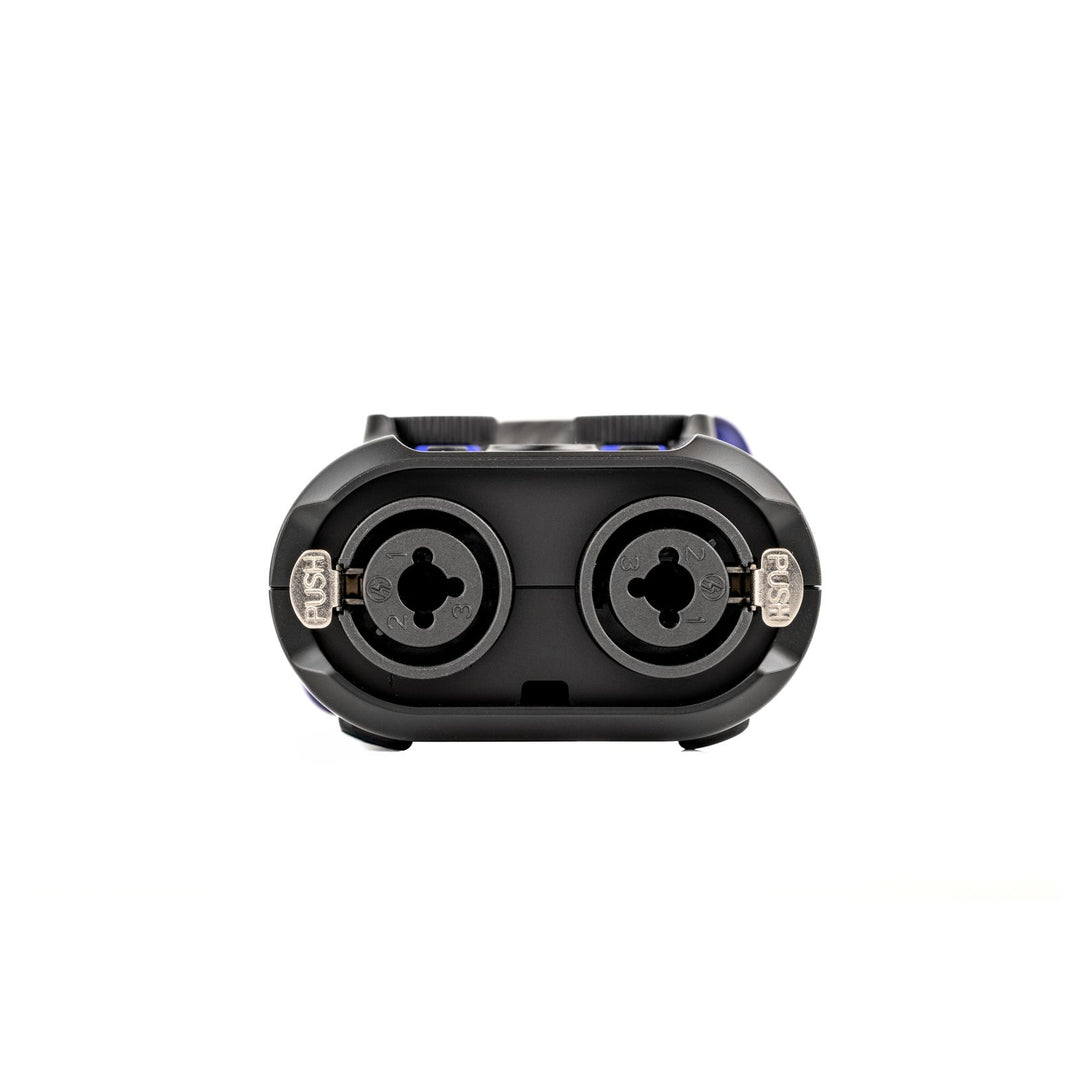

- 2 XLR/TRS phone inputs (48V, +4dBu input compatible)
- F-series preamps
- Color LCD screen
- Compatible with Zoom capsule system 3.0
- 4-in/2-out USB audio interface
- 9 hours of battery life on AA battery (2x) or USB-C power
Specs
INPUT AND OUTPUT CHANNELS
| Inputs | Mic capsule | 1 |
| MIC/LINE (mono) | 2 | |
| Outputs | LINE OUT | 1 |
| Headphone | 1 | |
| Built-in speaker (mono) | 1 | |
INPUTS
| XY mic: XYH-5s | 90º XY stereo format | |
| Pickup pattern | Unidirectional | |
| Sensitivity | –41 dB/Pa at 1 kHz | |
| Maximum sound pressure input | 140 dB SPL | |
| MIC/LINE IN: XYH-5s | Connector | 1 stereo mini jack |
| Input gain | −∞ – +60 dB | |
| Input impedance | 2 kΩ or more | |
| Plug-in power | 2.5 V | |
| MIC/LINE (mono) | Connectors | 2 XLR/TRS combo jacks |
| (XLR：2 HOT TRS：TIP HOT） | ||
| Input gain | −∞ – +60 dB | |
| Input impedance | MIC: 3 kΩ or more | |
| LINE: 3 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Equivalent input noise | –127 dBu or less (IHF-A) at 150Ω input | |
OUTPUTS

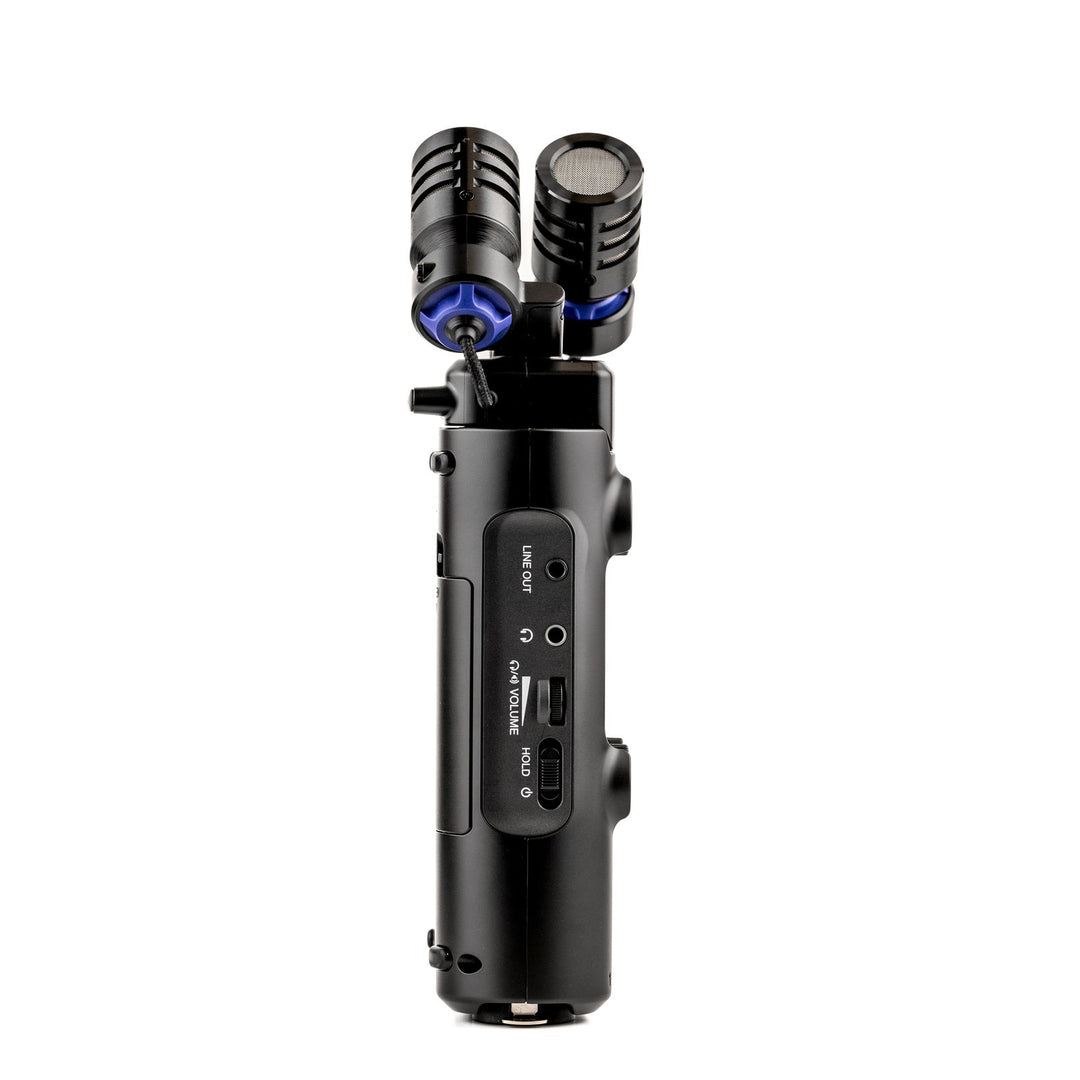

| LINE OUT | Connector | 1 stereo mini jack |
| Maximum output level | +1 dBu | |
| Output impedance | 110 Ω or less | |
| Headphone | Connector | 1 stereo mini jack |
| Maximum output level | 20 ｍW + 20 ｍW（when 32 Ω load） | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm x 30 mm elliptical dynamic speaker |
| Effective maximum output | 250 mW | |
RECORDER
| Maximum simultaneous recording tracks | 6 |
| Maximum simultaneous playback tracks | 4 |
| Recording formats | WAV |
| 44.1/48/96/192 kHz, | |
| 16-bit/24-bit/32-bit float | |
| mono/stereo | |
| BWF and iXML formats supported | |
| Recording media | microSDHC memory cards |
| microSDXC memory cards | |
CLICK HERE for information about microSD cards that have been confirmed to work with this unit.
DISPLAY
| 2.00" full-color LCD | 320 x 240 |
USB

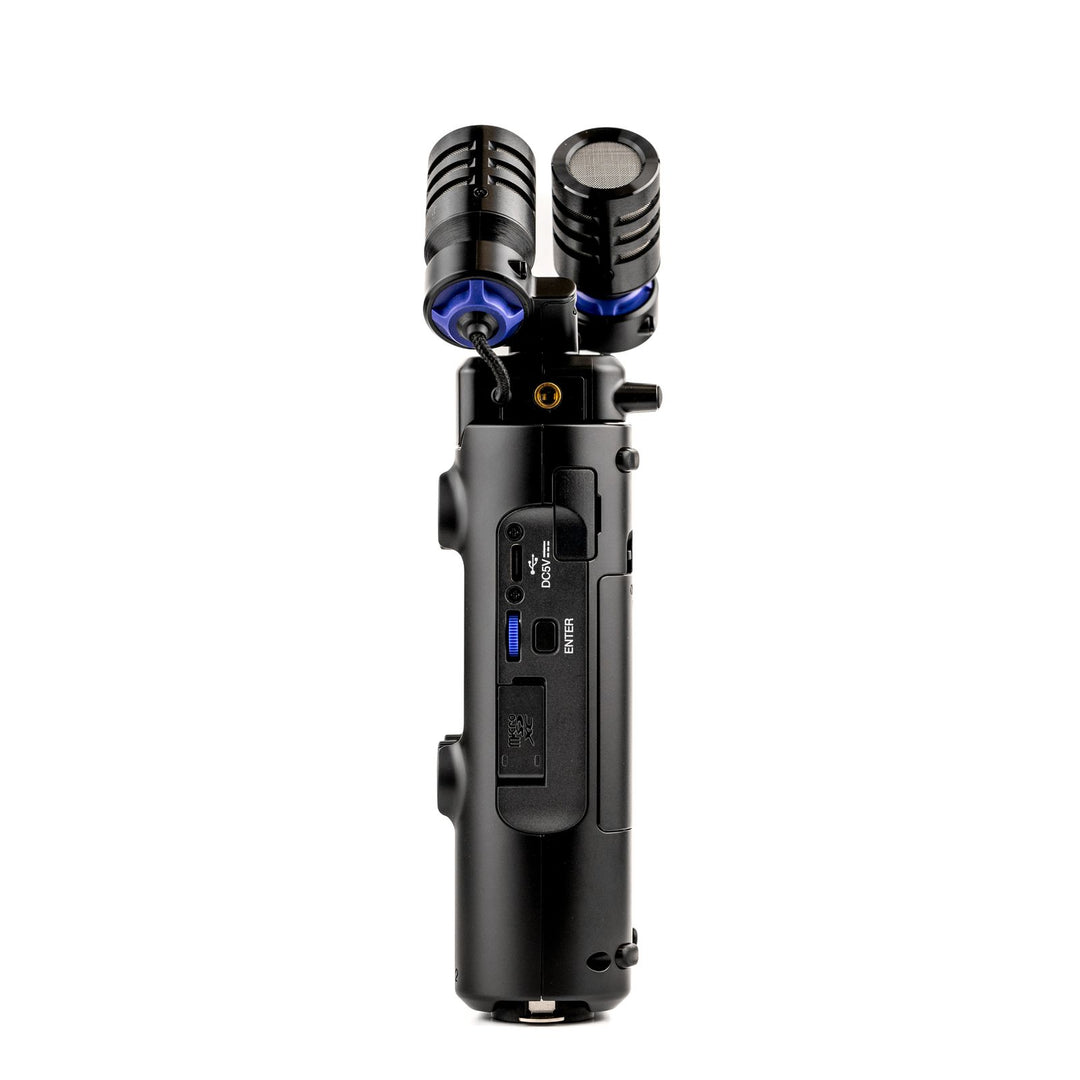

| Connector | USB Type-C | |
| • Use a USB cable that supports data transfer. | ||
| Audio Interface | USB 2.0 High Speed | |
| Input and output channels | 4 in / 2 out (Multi) | |
| 2 in / 2 out (Stereo) | ||
| Sampling frequencies | 44.1/48/96 kHz (audio interface only) | |
| 44.1/48 kHz (audio interface + onboard recording) | ||
| Bit depths | 24-bit, 32-bit float | |
| File transfer | USB 2.0 High Speed | |
REMOTE
| Dedicated wireless adapter | ZOOM BTA-1 |
POWER
| 4 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
| AC Adapter | ZOOM AD-17 (DC 5 V/1 A) |
| • USB bus power is supported. | |
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording
| Alkaline batteries | About 15 hours |
| NiMH batteries (1900 mAh) | About 13 hours |
| Lithium batteries | About 21 hours |
48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track (XYH-5s and inputs 1–2) recording
| Alkaline batteries | About 6 hours |
| NiMH batteries (1900 mAh) | About 6 hours |
| Lithium batteries | About 11.5 hours |
48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
| Power consumption | 5 W maximum |
| Dimensions | 86.0 mm (W) × 206.0 mm (D) × 54.6 mm (H) |
| Weight | 410 g (including batteries) |
Note: 0 dBu = 0.775 Vrms
